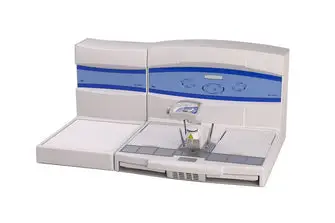

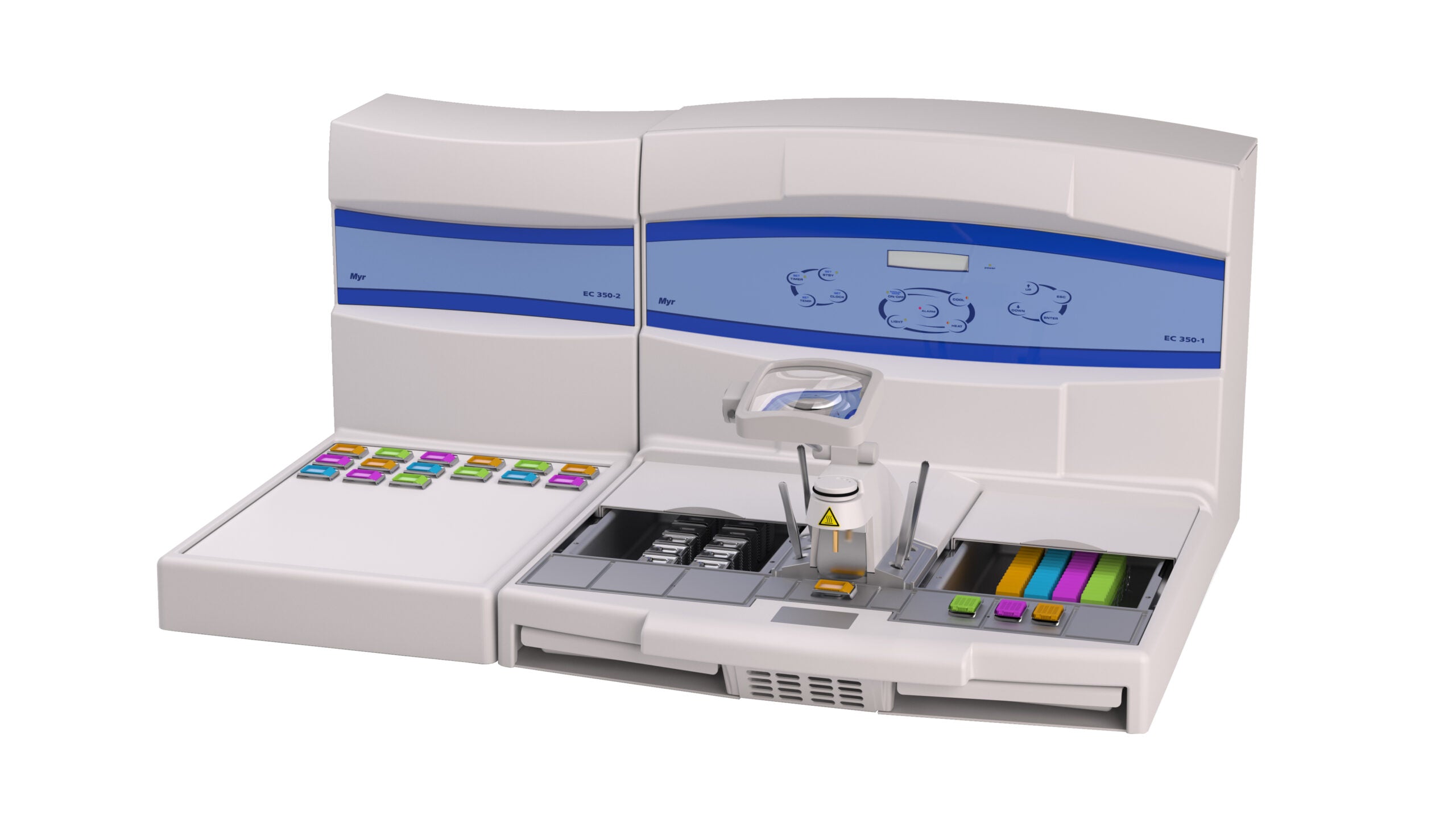

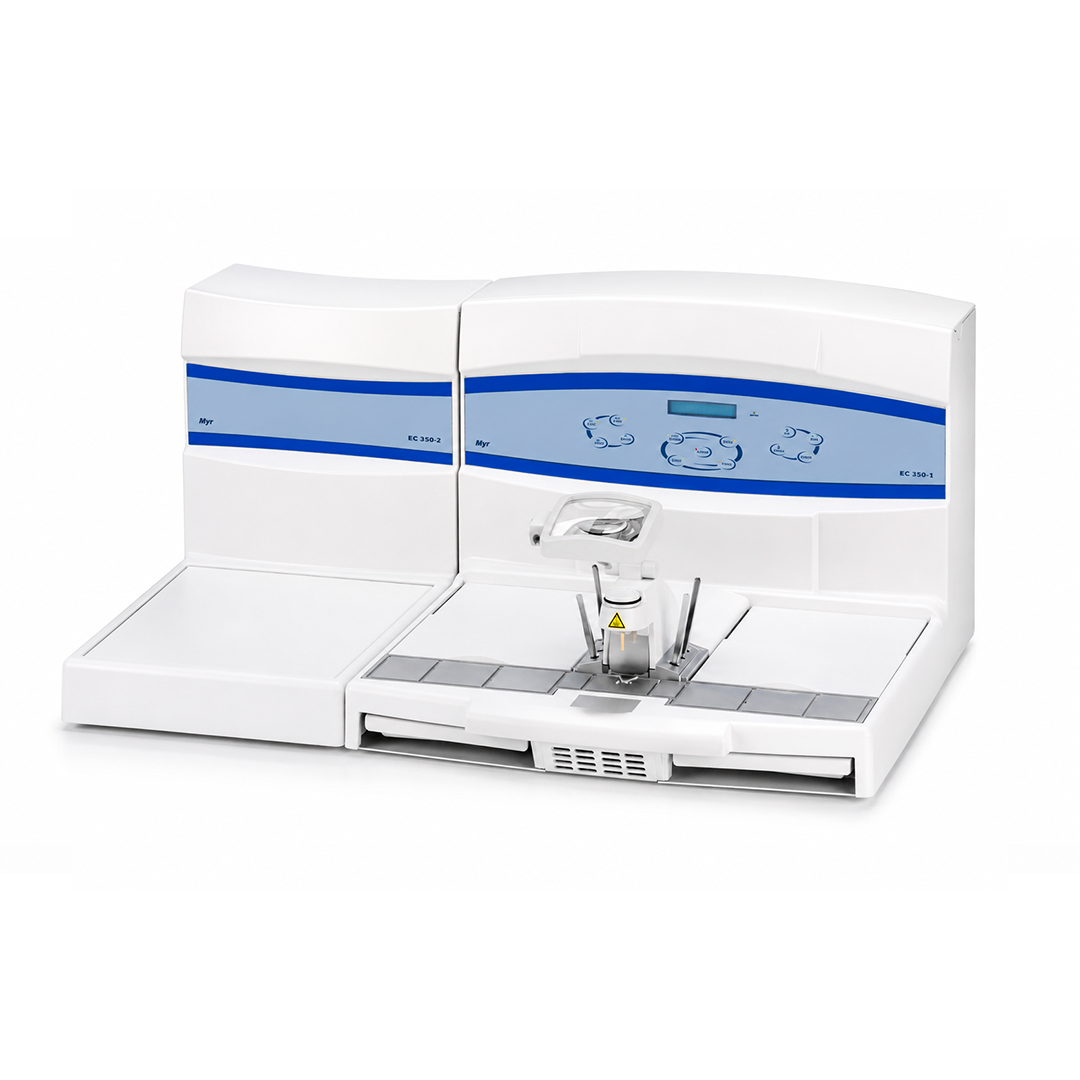

Myr EC 350 Modular Tissue Embedding Center

The Myr EC 350 is a modular tissue embedding system designed for precision, ergonomics, and efficiency in histology and pathology workflows. With flexible configuration options and a focus on user comfort, this embedding center delivers reliable laboratory performance whether in routine clinical use or advanced research settings.

Key Features:

• Innovative Modular Design – Separate dispensing and cryo consoles allow adaptation to individual lab layouts.

• Spacious Storage & Heated Trays – Independent heating for cassette and mold storage areas on each side of the paraffin dispenser.

• Ergonomic Work Area – Sloped heated surfaces improve comfort and reduce strain during long operating sessions.

• Precision Operating Panel – Easy programming of temperatures and schedules with integrated potentiometer control and adjustable display contrast.

• Forceps Management – Six independently heated wells for standard or optional electrically heated forceps.

• Integrated Magnifying Glass – Swiveling large-field magnifier with LED lighting supports accurate specimen orientation.

• High-Capacity Paraffin Reservoir – 5L capacity ensures continuous operation even in high-volume labs.

• Energy-Saving Operation – Automatic timer reduces energy use and optimizes paraffin preservation.

• Cryo Console with Frost Protection – Large cooling surface down to -12°C, optional methacrylate cover to prevent frost buildup.

Applications:

• Routine histology tissue processing

• Pathology workflows for embedding and sectioning

• Medicine and surgical sample preparation

• Industrial chemistry applications requiring precision tissue or material embedding

• Training environments in academic laboratory programs

Specifications:

Dispensing Console EC 350-1

• Dimensions (W × D × H): 595 × 650 × 430 mm

• Paraffin Reservoir: 5 L

• Heated Side Chambers: 1.7 L each

• Cassette Capacity: 190 cassettes

• Mold Capacity: 400 molds

• Temperature Range: 40°C to 70°C (paraffin, chambers, heated area, forceps wells)

• Optional Electrically Heated Forceps: 60°C to 75°C

• Voltage: 100–120 V / 220–240 V

• Frequency: 50/60 Hz

Cryo Console EC 350-2

• Dimensions (W × D × H): 340 × 620 × 405 mm

• Cold Plate: 375 × 307 mm

• Cooling Capacity: Up to 60 cassettes

• Temperature Range: 0°C to -12°C

• Optional Methacrylate Cover for frost prevention

Included Accessories:

• Dispensing console EC 350-1

• Cryo console EC 350-2

• Removable trays for cassette/mold storage

• Heated wells for forceps

• LED illumination and magnifying glass

• Waste drawers for paraffin collection

Warranty:

The Myr EC 350 comes with a 12-month warranty covering defects in materials and workmanship under normal use.

Optimize Your Workflow Today!

Streamline laboratory workflow with the Myr EC 350. From ergonomic design to energy-efficient operation, this equipment is built to meet the demands of modern histology and pathology labs. Contact us today to learn more about integrating this embedding center into your chemistry or medical applications.
