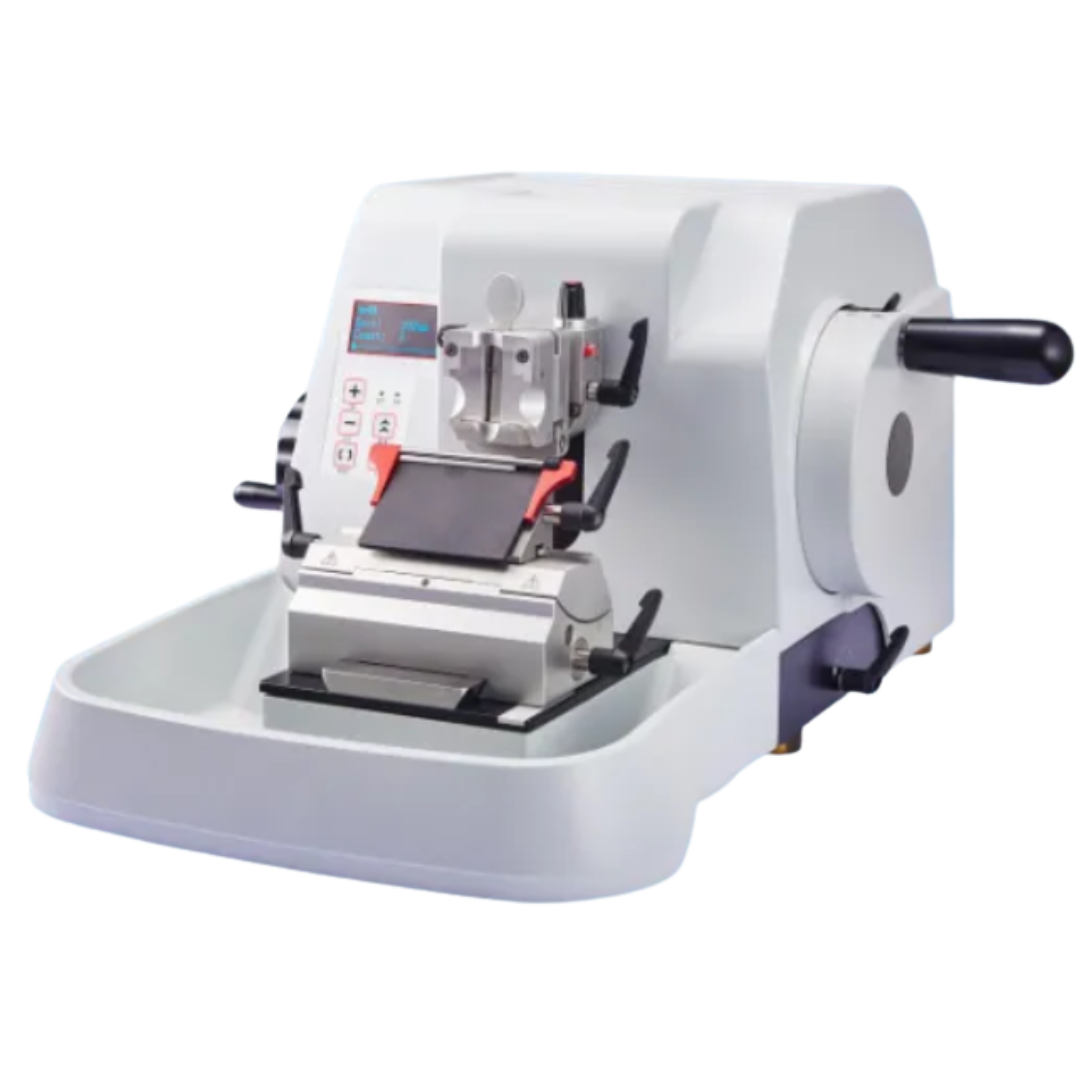

MES800 Rotary Microtome
MES Exclusive Line
The MES 800 by Craftek is a reliable manual and semi-automated rotary microtome for routine sectioning of specimens in clinical and research laboratories. This easy to use, state of the art microtome features a quick release specimen clamp, easy exchange specimen clamp, bi-directional course advance switch, and more. As part of our exclusive line of new laboratory equipment, this microtome is a great addition to any pathology lab.
MES800 Microtome Details:
- Can be used in Manual or Semi-Automated mode
- Specimen retraction function with on/off switch
- Quick release specimen clamp with a zero-reference indicator
- Course advance end of travel alert
- Easy exchange specimen clamp
- Bi-directional course advance wheel switch
- Disposable blade holder with dove-tail guide
- Fine sectioning thickness: .5 to 100μm
- Trim sectioning thickness range: 1 to 600 μm
SPECS:
| Sectioning Thickness Range: | 0.5 ~ 100μm |
| Setting Values | 0.5~5μm |
| Trimming Thickness Range | 1~600μm |
| Object Feed | 30mm |
| Specimen Orientation | Horizontal: ±8 Vertical: ±8 |
| Specimen Retraction | 5-100 μm, in 5 μm increments, can be turned off |
| Electric Course Feed: | 20 μm/click and 1000(2000)/s |
| Blade Holder Base Movement | ± 24mm. |
| Maximum Specimen Size (L x H x W): | 50 x 60 x 40 mm. |
| Dimensions Basic Instrument: | |
| Width (incl. 2 handwheels on both sides) | 480mm |
| Depth (incl. waste tray) | 577mm. |
| Height: | 286mm. |
| Net Weight | 29kg |
| Work Temperature | +10 °C ~ +35 °C |
| Work Humidity | <80%, no condensation water |
| Nominal Supply Voltage | 100 ~240V AC (±20V) |
| Nominal Frequency | 50/60 Hz |
| Power Draw | 70W |
