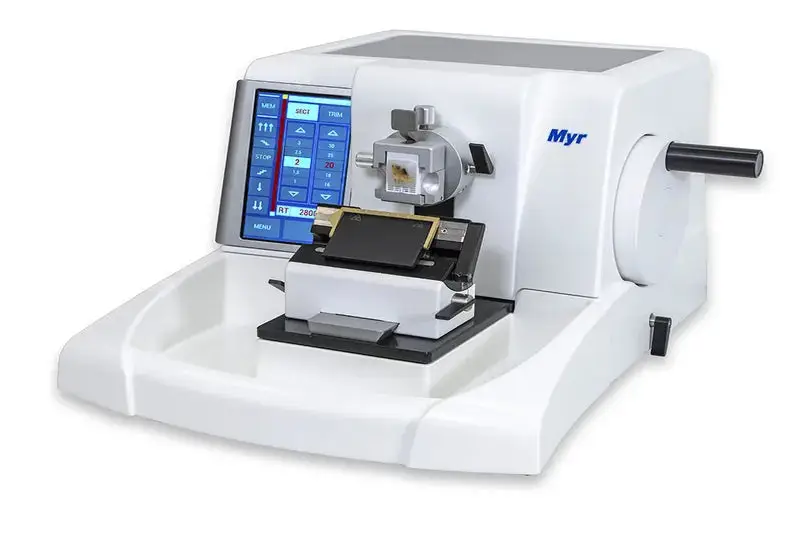

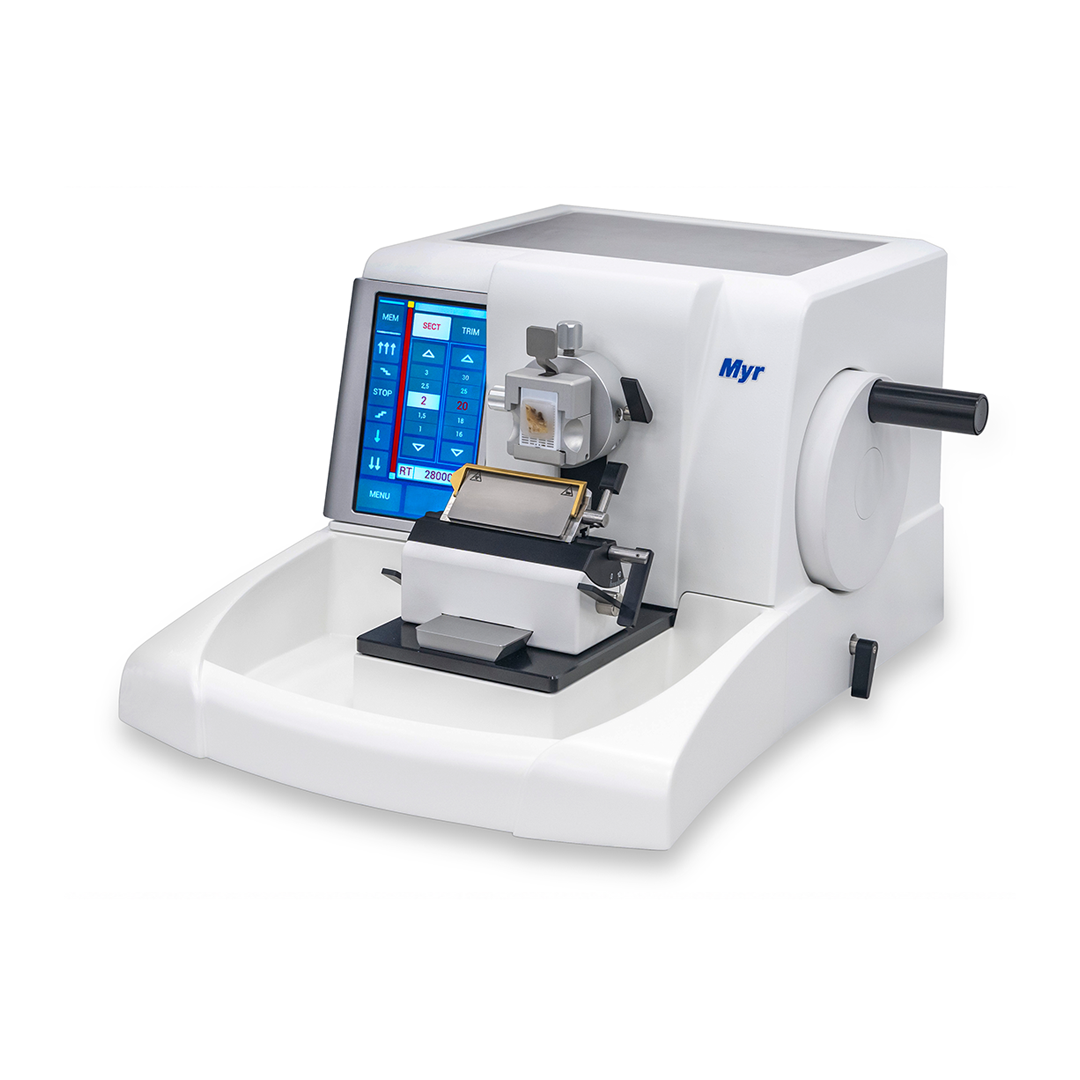

Myr M-240 Semi-Automated Rotary Microtome

The Myr M-240 rotary microtome is engineered for precision, ergonomics, and reliability in histology, pathology, and research laboratories. This advanced microtome combines state-of-the-art technology with a user-friendly touchscreen interface, enabling smooth sectioning of diverse specimens with exceptional control and repeatability. Built for both routine and specialized applications, it delivers performance that meets demanding laboratory standards.

Key Features:

• Full-Color 7" Touchscreen – Intuitive projected capacitive user interface displays section mode, trimming thickness, section counter, remaining travel, retraction, coarse feed, and memory functions.

• Precision Sectioning Control – Adjustable section thickness from 0.5 μm to 100 μm with multiple fine increments for high-accuracy cuts.

• Memory Function for Productivity – Store and recall specimen positions when working with uniform paraffin embedded tissue, with optional safety distance for secure block changes.

• Motorized Specimen Feed – Continuous and step modes allow precise forward and reverse feed, with selectable speeds for safe approach.

• Specimen Orientation System – X/Y axis ±8° with click-stop at 0° and full 360° rotation on the Z-axis for accurate alignment.

• Ergonomic Counterweight Handwheel – Perfectly balanced for smooth clockwise or counterclockwise rotation, minimizing user fatigue.

• Antistatic Waste Tray – Prevents paraffin adhesion, includes tool storage area, and supports quick cleanup.

• Knife Carrier System – Accepts low- and high-profile blades with lateral displacement and integrated finger guard for user safety.

Applications:

• Routine histology workflows in medical and research labs

• Pathology sample preparation requiring high-precision sectioning

• Industrial materials testing requiring rotary microtome section control

• Preparation of paraffin embedded tissue for staining, microscopy, and immunohistochemistry

• Teaching and training in medicine, laboratory science, and material analysis

Specifications:

• Section Thickness Range: 0.5 μm – 100 μm

• Thickness Control Increments: 0.5 μm, 1 μm, 2 μm, 5 μm, 10 μm steps depending on range

• Trimming Range: 1 μm – 600 μm

• Trimming Increments: 1 μm, 2 μm, 5 μm, 10 μm, 50 μm steps

• Specimen Feed Range: 28 mm ±1 mm

• Vertical Stroke: 72 mm ±1 mm

• Max Specimen Size: 50 × 60 × 40 mm

• Specimen Orientation: X/Y ±8°, Z-axis 360°

• Housing: Powder-coated stainless steel construction

• Weight: 33.9 kg (with tray)

Electrical Specifications:

Included Accessories:

• Knife carrier model MR (base + segment + blade holder)

• Orienting head for precise specimen alignment

• Quick release specimen clamp

• Antistatic section waste tray

• Mains power cord

• Allen key (size 6)

• 2 × 2.0A fuses

• Touchscreen protectors (set of 6)

• Dust cover

• User manual

Warranty:

The Myr M-240 rotary microtome is backed by a 12-month manufacturer warranty covering defects in materials and workmanship under normal use. Warranty excludes consumables, damage from misuse, electrical inconsistencies, unauthorized repairs, and environmental factors.

Optimize Your Workflow Today!

Enhance precision, ergonomics, and efficiency in your histology or research lab with the Myr M-240 rotary microtome. Designed for consistent sectioning performance, easy specimen orientation, and long-term durability, it’s the technical choice for laboratories committed to quality.
