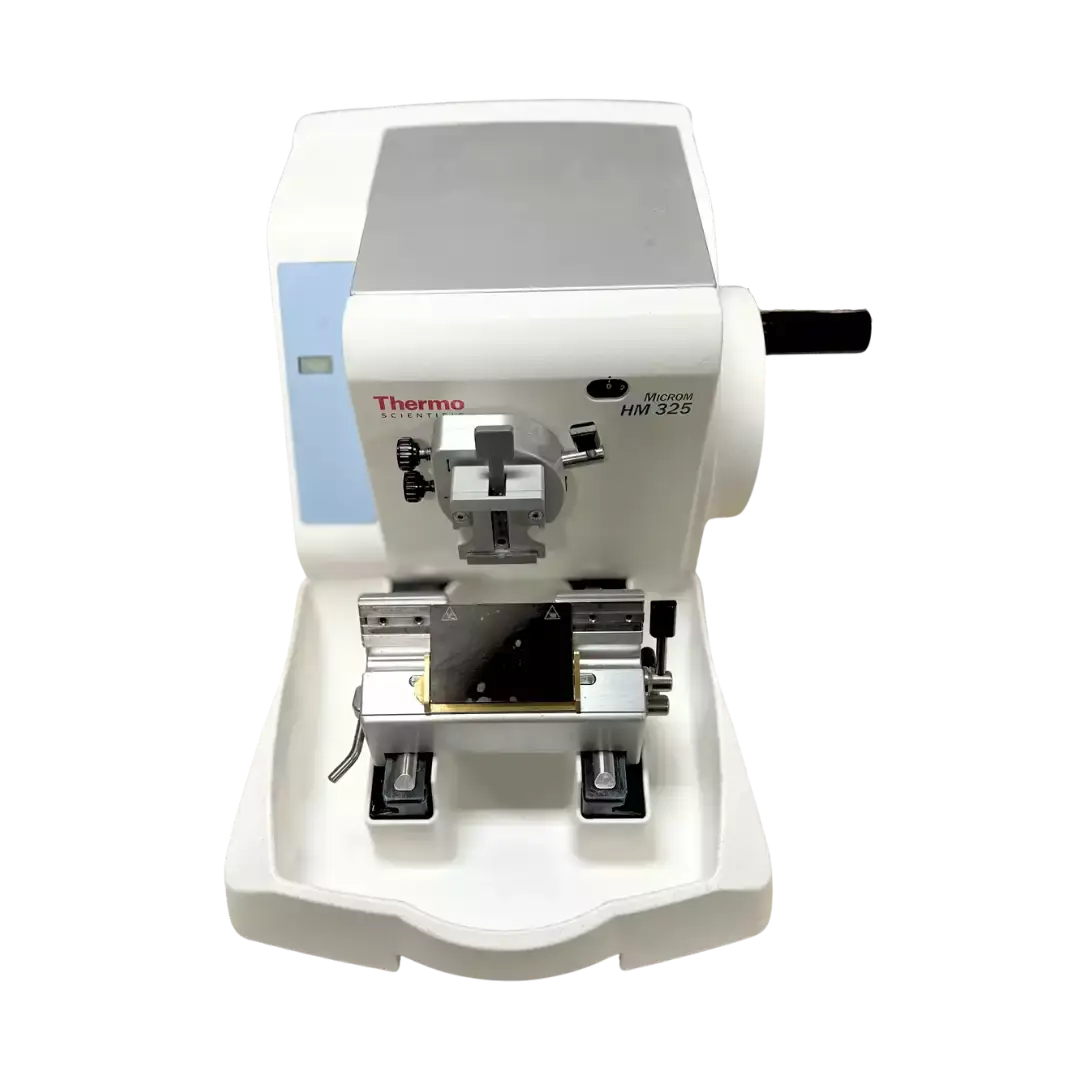

Remanufactured Microm HM 325 Manual Microtome | Medical Equipment Source
The remanufactured Microm HM 325 Manual Microtome is a premier manual rotary microtome engineered by Microm, the world's leading microtome manufacturer, for precise, stable sectioning of even the most difficult-to-cut paraffin specimens. A universal multi-purpose instrument, the Microm HM 325 microtome serves both paraffin sectioning and manual hard sectioning in biology, medicine, research, and industry.
Built around a mechanical precision micrometer feed and an especially smooth-running handwheel, the Microm HM 325 manual microtome delivers outstanding section quality with non-tiring ergonomic operation. Removable setting knobs operate from either side, specimen retraction protects the sample and blade, and a resettable electronic section counter supports daily lab workflow. Each remanufactured unit pairs proven Microm reliability with significant cost savings for budget-conscious laboratories.
Key Features:
-
Premier manual rotary microtome with a mechanical precision micrometer feed in an enclosed housing for stable, high-quality sectioning
-
Section thickness range of 0.5 to 60 microns with fine, multi-step increments for precise control
-
Two mechanical trim stages (10 microns and 30 microns), independent of the preset section thickness
-
Specimen retraction during return travel (can be switched off) for better section quality and longer tool life
-
Universal 8 degree specimen orientation, rotatable 360 degrees, with one-hand XY fine orientation and zero-positioning
-
Especially smooth-running handwheel with a brake that locks in any position for safe specimen exchange
-
Removable section-thickness setting knobs operable from the left or right side for ambidextrous use
-
Resettable electronic section counter to track work processes
-
Spacious section waste tray with integrated arm rest covering the entire working area, plus a removable storage plate
-
64 mm vertical specimen stroke and 28 mm horizontal feed; accepts E or ER disposable blade carriers and N or C knife carriers
-
Compatible with the Microm Section Transfer System (STS) and Cool-Cut for efficient step and serial sectioning
Applications:
-
Paraffin sectioning in clinical, research, and routine histology laboratories
-
Manual hard sectioning in biology, medicine, and industry
-
Step and serial sectioning workflows (with optional Cool-Cut)
-
Rapid re-orientation and sectioning of pre-cut blocks
Specifications:
|
Parameter |
Specification |
|---|---|
|
Instrument type |
Manual rotary microtome |
|
Section thickness range |
0.5 – 60 µm: 0–2 µm in 0.5 µm increments; 2–10 µm in 1 µm increments; 10–20 µm in 2 µm increments; 20–60 µm in 5 µm increments |
|
Trimming |
Two mechanical trim stages (10 µm and 30 µm), independent of preset section thickness |
|
Specimen retraction during return travel |
60 µm |
|
Vertical specimen stroke |
64 mm |
|
Horizontal specimen feed |
28 mm (manual coarse feed via coarse wheel) |
|
Specimen orientation |
Universal 8°, rotatable 360°; XY fine orientation with zero-positioning |
|
Feed mechanism |
Mechanical precision micrometer mechanism with enclosed housing |
|
Handwheel |
Especially smooth-running, with brake (locks in any position) |
|
Section counter |
Battery-powered, four-digit electronic section counter, resettable |
|
Section thickness indication |
Index window on front of instrument |
|
Waste management |
Spacious section waste tray covering entire working area; integrated removable storage plate |
|
Knife / blade carriers |
Disposable blade carrier E or ER; standard knife carrier N or C |
|
Compatible accessories |
Section Transfer System (STS); Cool-Cut; microscope; large field magnifier; clamping devices |
|
Dimensions (W x D x H) |
420 x 490 x 280 mm |
|
Weight |
23 kg |
|
Certification |
CE |
Warranty
Please contact Medical Equipment Source for specific warranty terms and available service programs for this remanufactured unit.
Optimize Your Workflow Today!
Bring premier manual sectioning to your histology laboratory with the remanufactured Microm HM 325 Manual Microtome. Engineered by Microm for precise, stable results on even the most difficult-to-cut paraffin and hard sections, this manual rotary microtome delivers ergonomic comfort and dependable performance at a fraction of the cost of new.
Contact Medical Equipment Source today to request a quote and discover how the Microm HM 325 microtome can elevate your histology operations.
