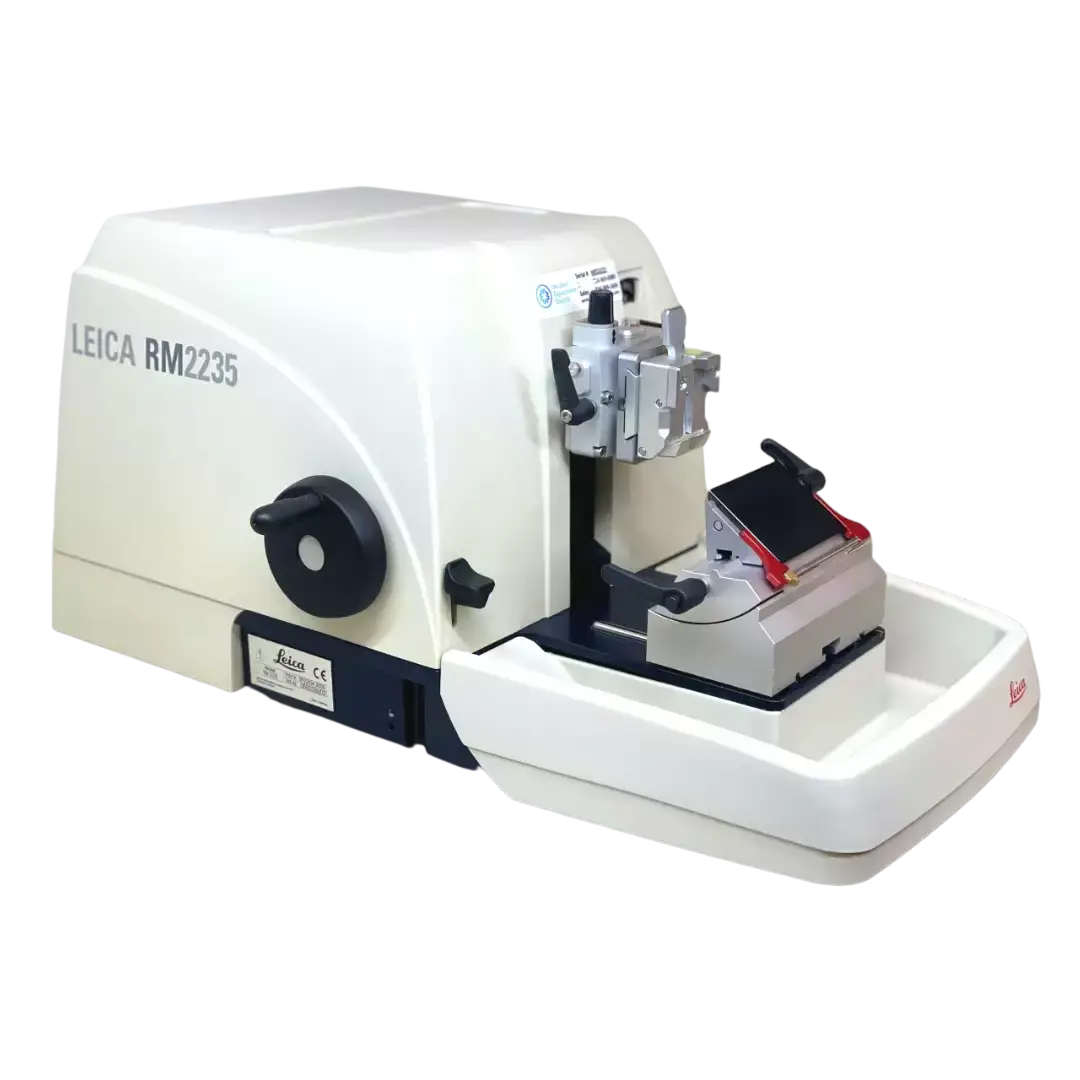

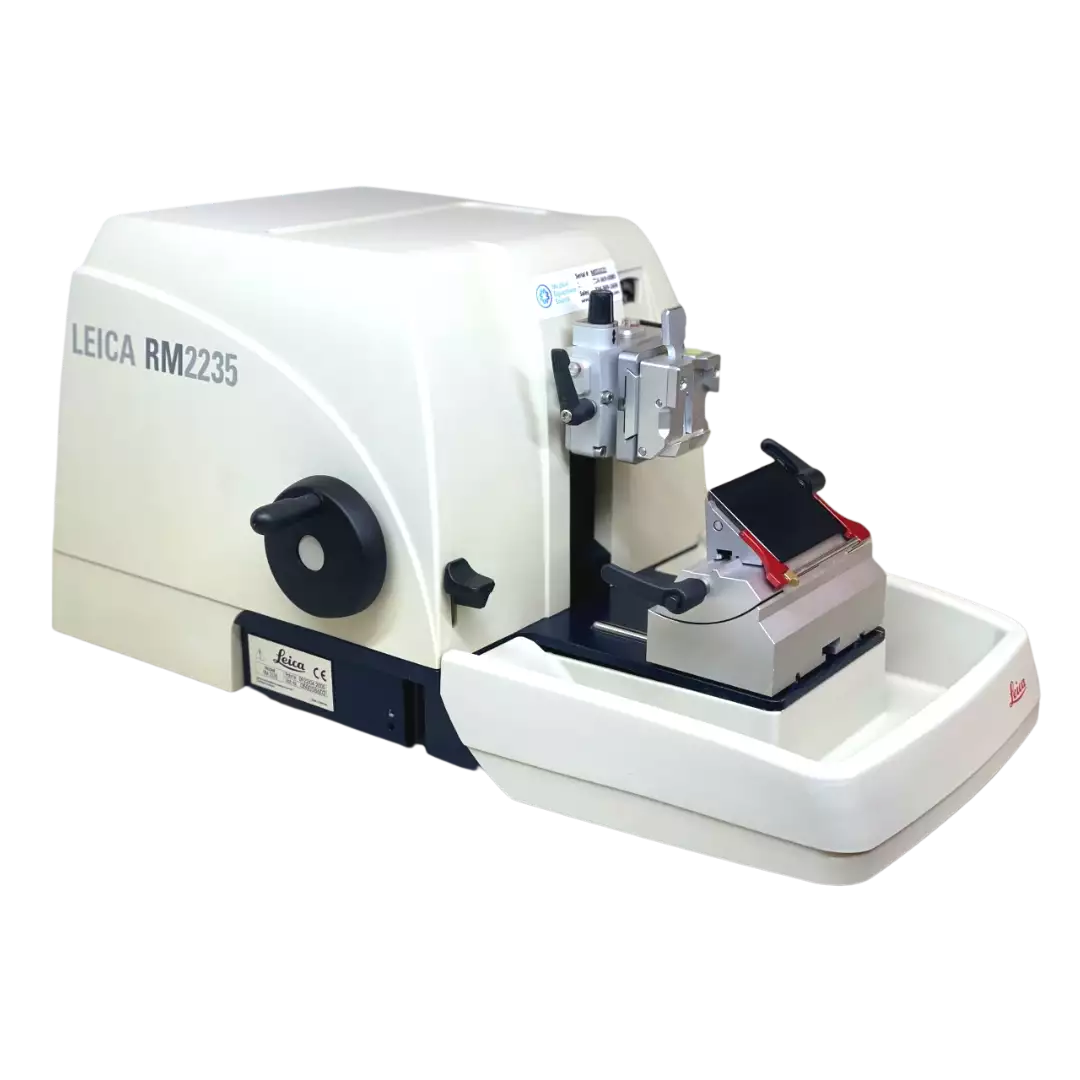

Remanufactured Leica 2235 Rotary Microtome

Storage Location

Section thickness setting: 1.0 – 60 µm

      1 to 10 µm in 1 µm increments

      10 to 20 µm in 2 µm increments

        20 to 60 µm in 5 µm increments

Storage temperature range: +5ºC to +50ºC

Humidity: < 85%

Maximum specimen size: 45 x 50 mm / 1.77 x 1.97 inches

Maximum sectioning area w/o retraction: 69 mm / 2.72 inches (without specimen orientation 1 µm)

Maximum sectioning area with retraction: 62 mm / 2.44 inches

Horizontal specimen feed: approx. 30 mm / 1.18 inches

Vertical stroke: 70 mm / 2.76 inches

Repositioning of knife holder base:

North-south: ± 25 mm

Specimen retraction: 200 µm, can be turned off manually

Trimming thickness selection: 10 µm / 50 µm

Clamping lever: repositioning of 360°

Specimen orientation (optional):

Horizontal: ± 8 °

Vertical: ± 8 °

Rotability: ± 90 °

Room conditions:

Relative humidity: max. 80%, non condensing

Operating temperature range: + 10 °C to + 35 °C

Room temperature range: + 10 °C to + 35 °C

Dimensions:

Height: 295 mm / 11.61 inches

Height (total): 305 mm (with storage area on the housing) / 12.01 inches

Weight (without accessories): approx. 29 kg / 64 lbs

Depth (without waste tray): 520 mm / 20.47 inches

Width (with handwheel): 413 mm / 16.26 inches

Width (without handwheel): 300 mm / 11.81 inches
