Remanufactured Reichert Jung 2030 Manual Microtome | Medical Equipment Source

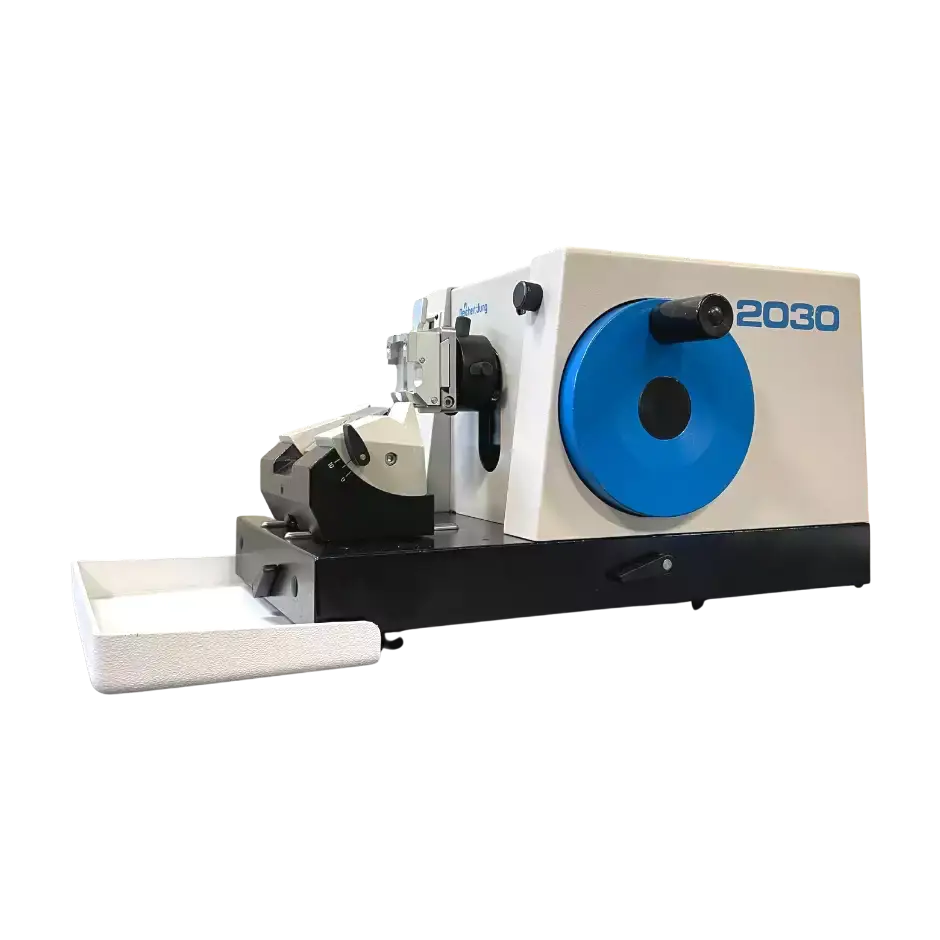

The remanufactured Reichert Jung 2030 Manual Microtome is a precision manual rotary microtome for histology, pathology, and biological research labs. Also known as the Reichert Jung 2030 Biocut, it is built for smooth, fatigue-free sectioning of paraffin and plastic-embedded specimens. The Reichert Jung 2030 microtome delivers consistent, high-quality sections at an exceptional value.
At the core of the Reichert Jung microtome 2030 is a smooth-running rotary mechanism with an automatic feed that advances the specimen for each section. A handwheel with a locking brake holds the specimen safely in place during blade changes, and a 4-digit LCD section counter tracks every cut. A universal cassette clamp accepts Reichert-Jung and other standard cassettes for fast, secure specimen changes.
Every Reichert Jung 2030 from Medical Equipment Source is fully remanufactured and tested to perform like new. You get the proven durability of the Reichert Jung 2030 Biocut platform at a fraction of the price of a new rotary microtome. It is an ideal choice for labs that want reliable, budget-friendly sectioning.
Key Features:
-
Precision manual rotary microtome, also sold as the Reichert Jung 2030 Biocut
-
Smooth-running rotary mechanism with automatic specimen feed for consistent section thickness
-
Handwheel with locking brake for safe specimen exchange
-
Section thickness from 0 to 60 microns with stepped increments for precise control
-
X-Y fine specimen orientation for accurate alignment of the block face
-
4-digit LCD section counter with reset to track section numbers
-
Universal cassette clamp that accepts Reichert-Jung and other standard cassettes
-
Accepts a range of knife holders for conventional, tungsten-carbide, glass, and disposable blades
-
Handles specimens up to 40 x 55 mm (height x width)
-
Maintenance-free design that is easy to clean with accessible components
Applications:
-
Routine histology sectioning of paraffin blocks
-
Sectioning of plastic-embedded specimens
-
Tissue preparation in pathology laboratories
-
Biological, industrial, and academic research sectioning
Specifications:
|
Parameter |
Specification |
|---|---|
|
Model designation |
Reichert-Jung Biocut 2030 |
|
Instrument type |
Manual rotary microtome |
|
Section thickness range |
0 – 60 µm |
|
Section thickness settings |
1 µm increments from 0–10 µm; 2 µm increments from 10–20 µm; 5 µm increments from 20–60 µm |
|
Horizontal specimen feed range |
25 mm |
|
Vertical specimen movement |
59 mm |
|
Maximum specimen size |
40 x 55 mm (height x width) |
|
Specimen orientation |
X-Y fine orientation |
|
Section counter |
4-digit LCD with reset (battery-powered) |
|
Specimen feed |
Automatic feed; round-rod guides |
|
Handwheel |
Smooth-running, with locking brake |
|
Clamping |
Universal cassette clamp; orientable and non-orientable specimen clamps available |
|
Knife / blade compatibility |
Knife holders for conventional, tungsten-carbide, glass, and disposable blades |
|
Dimensions (L x W x H) |
47 x 40 x 27 cm |
|
Space requirement |
60 x 60 cm |
|
Weight |
29 kg |
Warranty
Please contact Medical Equipment Source for specific warranty terms and available service programs for this remanufactured unit.
Optimize Your Workflow Today!
Bring precise, fatigue-free sectioning to your lab with the remanufactured Reichert Jung 2030 Manual Microtome. As the trusted Reichert Jung 2030 Biocut, this manual rotary microtome pairs a smooth-running mechanism with X-Y specimen orientation to deliver consistent, high-quality sections at a fraction of the cost of new.
Contact Medical Equipment Source today to request a quote and see how the Reichert Jung 2030 microtome can elevate your histology workflow.
