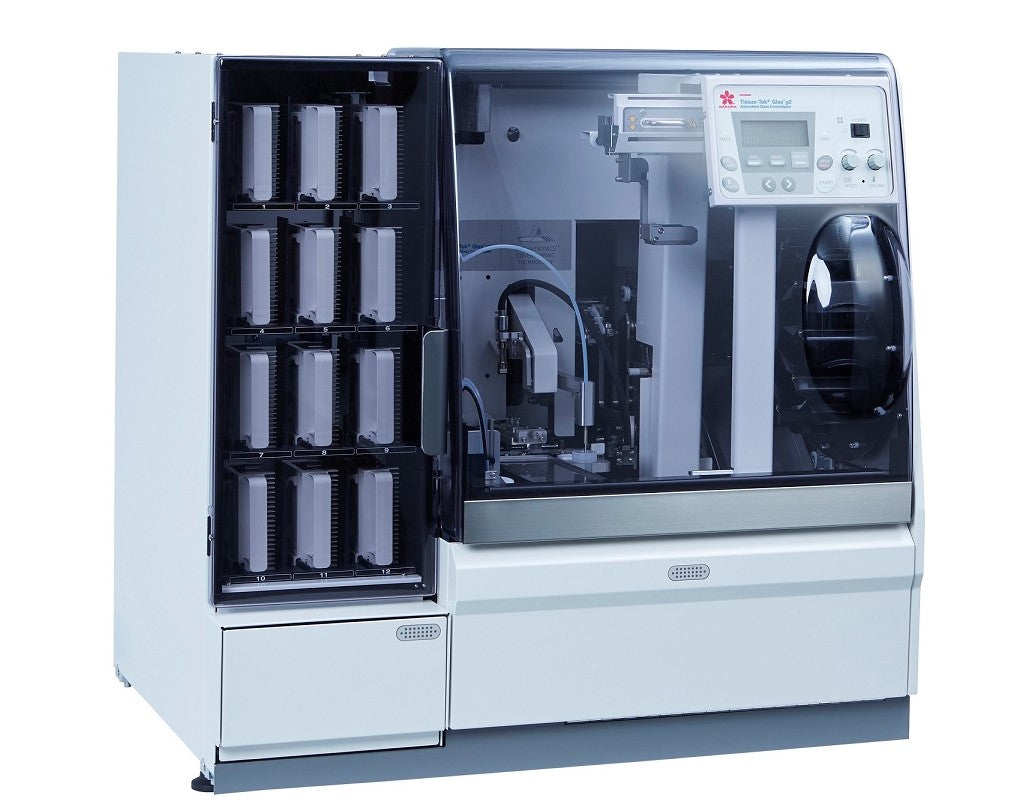

Remanufactured Sakura Tissue Tek Glas G2 Glass Coverslipper
Fast, Reliable Glass Coverslipping for Modern Histology Labs
The Tissue-Tek® Glas™ g2 Glass Coverslipper delivers high-speed, high-clarity glass coverslipping for histology and cytology laboratories. Designed to reproduce traditional hand coverslipping with automated precision, the Glas g2 ensures accurate coverslip placement, strong mounting medium control, and reliable performance in daily laboratory workflows.
With throughput up to 400 slides per hour and on-board storage for up to 240 slides, the Glas g2 supports continuous operation while minimizing manual intervention. The system offers flexible programming, optional LIS connectivity, and built-in safety features, making it well-suited for laboratories seeking dependable, high-volume coverslipping performance.
Features
-
Processes up to 400 slides per hour
-
Mechatronic™ Slide Technology for consistent, air bubble-reduced coverslipping
-
Continuous loading capability
-
240-slide unload capacity
-
Up to 9 customizable programs
-
On-the-fly adjustment of mounting medium volume and speed
-
Barcode scanner with LIS connectivity
-
Advanced filtration system
Specifications
|
Product name |
Tissue-Tek® Glas™ g2 Glass Coverslipper |
|
Product code |
6500 |
|
Application |
Histology, Cytology, Special Staining, Advanced Staining |
|
Dimensions |
29.5 (W) x 24.4 (D) x 29.5 (H) inches 75 (W) x 62 (D) x 75(H) cm |
|
Weight |
242 lbs (110 kg), without reagents |
|
Throughput |
Up to 400 slides/hour |
|
Configuration |
Benchtop |
|
Integrated staining via Link |
Tissue-Tek Prisma® or Tissue-Tek Prisma® Plus, using the Link Between Tissue-Tek Prisma® and Tissue-Tek® Glas™ g2 (6168) |
|
Load capacity |
3 baskets into the load station |
|
Unload capacity |
12 baskets (240 slides in the unload station) |
|
Mounting medium |
16 oz. xylene-based |
|
Fume filtration |
Activated Carbon Filters on-board Optional external vent connection |
|
Slide size |
1 x 3 inches (25 x 75 mm) |
|
Coverslip reusable holders |
40, 50, 55, or 60 mm |
|
Acceptable dimensions of coverslips |
24 x 40 mm, 24 x 50 mm, 24 x 55 mm, 24 x 60 mm 25 x 40 mm, 25 x 50 mm, 25 x 55 mm, 25 x 60 mm |
|
User interface display |
LCD, 4 lines (20 characters each), 2 LED’s |
|
LIS connectivity |
Optional barcode reader (6508) |
|
Operating temperature |
10 to 40°C (50 to 104°F) |
|
Rated voltage and current |
Single phase, 115VAC ± 10%, 50/60 Hz, 2.2A |
|
Certifications |
IEC 61010-1 2nd ed., CAN/CSA C22.2 No. 61010-1, UL 61010-1 |
|
Regulatory status |
IVD, FDA Class I |
