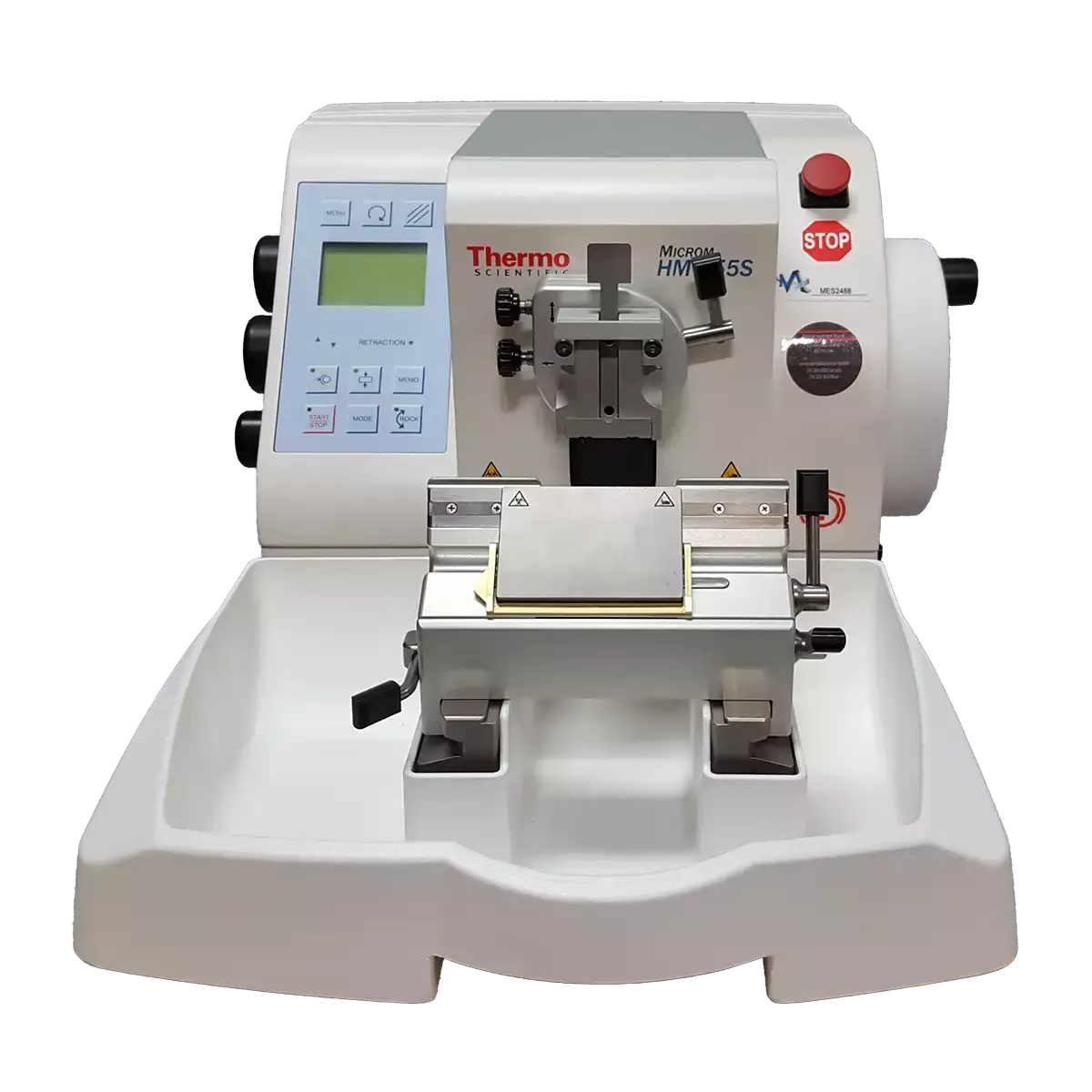

Remanufactured Microm HM 355 S3 Automated Microtome | Medical Equipment Source
The Microm HM 355 microtome combines manual or motorized sectioning with a menu-driven control panel, joystick specimen advance, and a user-selected cutting window that boosts throughput by returning faster than the cutting stroke. Safety and ergonomics lead the class, with a double-tap motor start, one-handed zero-orientation head, and an emergency stop that immediately cuts power to the motor. Each remanufactured unit delivers automated performance at a fraction of the cost of new.
Key Features:
-
Menu-driven control panel usable from either side; display shows cutting speed, section count, section thickness, and advance distance
-
Four cutting modes: single, interval, multi, and continuous
-
User-selected cutting window that maximizes throughput by returning faster than the optimized cutting stroke
-
Manual and/or foot-pedal control with double-tap start to activate the sectioning motor
-
Joystick control for specimen advance and rewind; one-handed zero-orientation head
-
Instant switch between trim and section settings with independently selectable trim and section speeds
-
Rock option advances the specimen head by a set amount to trim without turning the hand wheel through full turns
-
Selectable specimen retraction (40 microns) to protect samples and the blade edge
-
Emergency stop immediately cuts power to the motor; guide-rail guidance for stability
-
Five on-screen command languages; large, easy-to-clean waste tray extending below the blade holder
Applications:
-
Routine paraffin sectioning in clinical and pathology laboratories
-
Sectioning of plastic-embedded specimens
-
High-throughput sectioning across an extensive range of specimen types
-
Single, interval, multi, and continuous mechanized cutting workflows
-
Research and industrial histology requiring automated, repeatable performance
Specifications:
|
Parameter |
Specification |
|---|---|
|
Instrument type |
Automatic (fully automated) rotary microtome |
|
Section thickness range |
0.5 – 100 µm |
|
Trim thickness range |
5 – 500 µm |
|
Maximum sectioning speed |
400 mm/s |
|
Vertical cutting stroke |
72 mm |
|
Total specimen advance |
28 mm |
|
Specimen retraction |
40 µm (selectable) |
|
Cutting modes |
Single, interval, multi, and continuous |
|
Section counter |
Standard |
|
Controls |
Menu-driven control panel (usable from either side); joystick specimen advance and rewind; manual and/or foot-pedal control |
|
On-screen languages |
Five |
|
Includes |
Disposable blade carrier E; clamp |
|
Waste tray |
Large, easy-to-clean; extends below the blade holder |
|
Dimensions (D x W x H) |
20.5 x 16 x 11 in (52 x 41 x 28 cm) |
|
Weight |
77 lb (35 kg) |
Electrical Specifications:
|
Parameter |
Specification |
|---|---|
|
Electrical requirements |
115 V, 60 Hz |
|
Voltage |
115 V |
|
Frequency |
60 Hz |
Warranty
Please contact Medical Equipment Source for specific warranty terms and available service programs for this remanufactured unit.
Optimize Your Workflow Today!
Bring fully automated, high-throughput sectioning to your histology laboratory with the remanufactured Microm HM 355 S3 Automated Microtome. Engineered by Microm with four mechanized cutting modes, 400 mm/s sectioning speed, and class-leading safety, this automatic rotary microtome delivers exceptional sections across an extensive range of specimen types at a fraction of the cost of new.
Contact Medical Equipment Source today to request a quote and discover how the Microm HM 355 microtome can elevate your histology operations.
