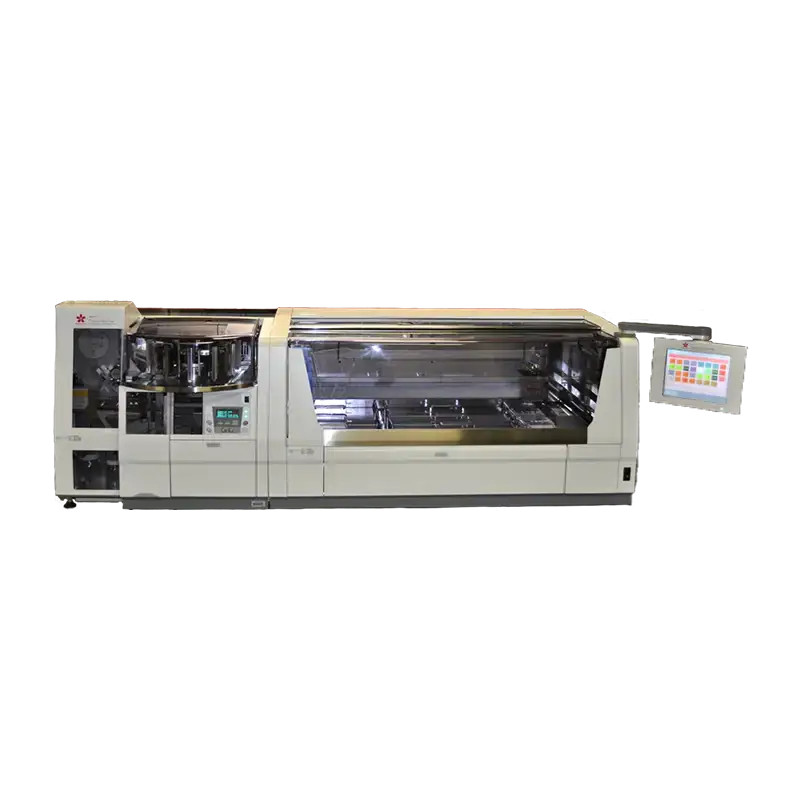

Remanufactured Sakura Tissue-Tek Prisma Staining System with 4740 Coverslipper
Bring automated precision to your histology workflow with the remanufactured Sakura Tissue-Tek Prisma Staining System, paired with the Tissue-Tek Film 4740 Automated Coverslipper for end-to-end slide preparation.
Designed for high-throughput surgical pathology and clinical laboratory environments, this remanufactured staining system takes slides seamlessly from the staining process through coverslipping in a single, continuous workflow. Whether you're running routine H&E stain protocols or more complex staining procedures, this Sakura Tissue-Tek Prisma staining system delivers the consistent, reliable results your lab demands.
Key Features:
-
Integrated automated slide stainer and Film coverslipper for end-to-end slide preparation
-
The Tissue-Tek Film 4740 Coverslipper links directly to the Prisma stainer via optional transfer link station, enabling automatic slide delivery from staining to coverslipping
-
Coverslipping performed at approximately 3 seconds per slide with continuous processing of up to 3 pre-loaded baskets (60 slides)
-
Maximum throughput of 1,080 coverslipped slides per hour
-
Resin-coated Tissue-Tek Film and xylene system eliminates the need for cover glass and mounting media
-
User-selectable film lengths: 45 mm, 50 mm, 55 mm, and 60 mm
-
Microcomputer-controlled mechanical movements with four-line LCD display for real-time status, setup menus, error codes, and messages
-
Built-in carbon filtration system absorbs xylene fumes, with optional duct connection adapter for external venting
-
12-position carousel unloading unit holds up to 240 coverslipped slides
-
Compatible with Tissue-Tek DRS 2000 and Prisma slide baskets
Applications:
-
Routine H&E staining and automated coverslipping for surgical pathology
-
High-throughput histology and clinical laboratory slide preparation
-
Cytology and hematology specimen processing
-
Continuous staining workflows requiring seamless integration between stainer and coverslipper
-
Remanufactured staining system for labs seeking cost-effective access to the Sakura Tissue-Tek Prisma platform
Specifications:
|
Parameter |
Specification |
|
Processing Speed |
Up to 1,080 slides per hour; ~3 seconds per slide |
|
Loading Capacity |
3 baskets (60 slides) simultaneously |
|
Unloading Capacity |
12-basket carousel unit (240 coverslipped slides) |
|
Acceptable Slide Dimensions |
24.7–26.5 mm (W) x 74.7–76.5 mm (L); 0.9–1.2 mm thickness |
|
Film Width |
24 mm |
|
Film Lengths (selectable) |
45 mm, 50 mm, 55 mm, 60 mm |
|
Film Material |
Cellulose Triacetate with Resin and Back Coatings |
|
Compatible Solvent |
Reagent grade or analytical grade xylene only |
|
Xylene Bottle Capacity |
500 ml |
|
Waste Bottle Capacity |
200 ml |
|
Xylene Dispense Volume |
5 user-selectable levels (1 min – 5 max) |
|
Fume Control |
Dual activated carbon cartridge filtration; optional external duct port (38 mm or 75 mm OD) |
|
Display |
Four-line LCD with nine keypad switches and three LEDs |
|
Coverslipper Dimensions |
72 cm (W) x 58 cm (D) x 69 cm (H) / 28 in (W) x 23 in (D) x 27 in (H) |
|
Instrument Weight |
75 kg (165 lbs) |
|
Operating Temperature |
10°C to 40°C (50°F to 104°F) |
|
Operating Humidity |
30–85% relative humidity (non-condensing) |
|
Atmospheric Pressure |
70 kPa to 106 kPa |
|
Storage Temperature |
-10°C to 60°C |
|
Storage Humidity |
30–95% relative humidity (non-condensing) |
|
Safety Standards |
IEC 61010-1 2nd Ed., CAN/CSA C22.2 No. 61010-1 2nd Ed., UL 61010-1 2nd Ed.; CE registered |
|
Model |
4740 (USA) |
Electrical Specifications:
|
Parameter |
Specification |
|
Voltage |
115 VAC ±10% |
|
Frequency |
60 Hz |
|
Amperage |
1.3 A |
|
Max Current Draw |
<15 A |
Maintenance:
Proper maintenance ensures reliable performance and long instrument life. Key maintenance intervals include:
-
Daily: Empty the xylene waste bottle; inspect and clean internal components as needed
-
Every 2 weeks: Replace activated carbon filters after two weeks of continuous use
-
Monthly: Empty and clean the film waste tray; brush rollers and blade assembly to remove resin dust
-
Every 10 rolls of film (~10,000 slides): Replace the cutter blade, or sooner if film cuts become ragged or torn
-
As needed: Soak slide baskets in xylene to remove resin/xylene residue buildup; inspect baskets weekly for wear or stress
-
Extended idle periods: Power down the instrument and roll the film back onto the roll to prevent curvature from roller contact
Warranty
This remanufactured Sakura Tissue-Tek Prisma staining system is sold by Medical Equipment Source and is backed by a 1-year warranty from MES. Please contact Medical Equipment Source for full warranty terms and service details.
Optimize Your Workflow Today!
The remanufactured Sakura Tissue-Tek Prisma Staining System with 4740 Film Coverslipper is a complete, integrated solution for laboratories seeking automated, high-throughput slide staining and coverslipping in a single system. From routine H&E staining to continuous surgical pathology workflows, this staining system reduces manual handling, increases throughput, and delivers consistently coverslipped slides ready for diagnosis.
Contact Medical Equipment Source today to request a quote and find out how this staining system can elevate efficiency in your histology or pathology lab.
